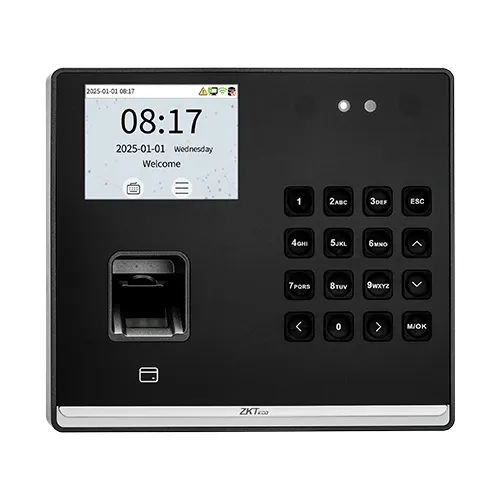

ZKTeco SenseFP M2 Access Control Terminal

Main Features

Fingerprint Capacity

3,000 (1:N) (Standard)

Face Capacity

N/A

ID Card Capacity

3,000 (1:N) (Standard)

Record Capacity

150,000 (1:N)

Display

2.8″ TFT Color LCD Screen (320*240)

Communication

TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
USB: Type A (USB Drive Only )*1
Electric Lock*1, Door Sensor*1, Exit Button*1

Standard Functions

ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, HTTPs / SSH Backend Access, T9 Keyboard (Input)

Others

Card Type: ID Card@125 kHz (Standard), IC Card@13.56 MHz (Optional)
Max. User Password Length: 8 Digits
Biometric Authentication Speed: less than 1 sec (Fingerprint)
False Acceptance Rate (FAR) %: SenseFP M2: FAR ≤ 0.0001% (Fingerprint )
False Rejection Rate (FRR) %: FRR ≤ 0.1% (Fingerprint )
CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor
Backup Battery (Optional):
2,000 mAh (Lithium Battery)
Max. Operating Hours: 4 Hours
Max. Standby Hours: 7 Hours
Estimated Charging Time: 5 Hours

Physical Specification

Dimension

154 mm*138 mm*34 mm (L*W*H)

Weight

0.99 kg

Power Supply

DC 12V 1.5A

Others

Operating Temperature: -5°C to 45°C
Operating Humidity: 10% to 90% RH (Non-condensing)
Installation: Wall-mount (Compatible with Asian Gang Box / Single Gang Box)
Certifications: ISO14001, ISO9001,CE, FCC, RoHS

Manufacture Warranty

Warranty

1 Year
