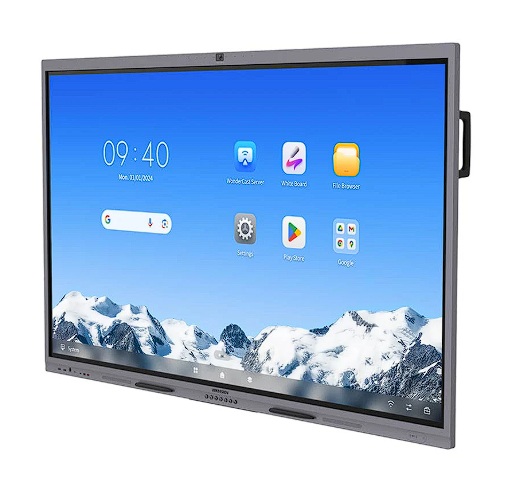

Hikvision DS-D5C75RB/B 75 Inch 4K UHD Interactive Flat Panel Display with 8MP AI Camera & 8 Array Mic (For Android)

Display Details

Display Format Native Resolution

4K Ultra HD 3840 × 2160

Panel Type

DLED

Aspect Ratio

16:9

Picture Response Time

6 ms

Refresh Frequency

60Hz

Pixel Pitch

0.124（H） × 0.372（V）mm

Display Colors

1.07G

Brightness (typical)

400 cd/m² (Typ.)

Contrast Ratio

5000:1 (Static)
30,000:1 (Dynamic)

Viewing Angle

178°(H)/178°(V)

Life Time

50,000 hours

Others

Surface Glass: 3.2 mm Anti-Glare Glass
Surface Haze: 25%Haze
Glass Bonding Method: Zero Lamination
Display Area: 1428.48mmx803.52mm
Working Duration: 7 × 16H
Transmittance: 88% ± 3

Touch System

Touch Point

45 point multi-touch

Touch Response Time

＜ 5 ms

Surface Hardness

9H

Interpolation Resolution

32768 × 32768

Others

Minimum Touch Object: ≥ 2 mm
Touch Precision: ± 1 mm (≥ 90% touching area)

Operating System

System Version

Android 13.0

CPU

Quad-core Cortex-A76 × 4（2.4GHz）and quad-core Cortex-A55 × 4（1.8GHz)

GPU

Mali-G610 MC4

RAM

8GB

ROM

128GB

Others

HDCP Version: 2.3

Connectivity

HDMI

3x HDMI 2.0 Input
1x HDMI 2.0 Output

VGA

1x VGA

PC Audio In

1x 3.5mm Audio
1x SPDIF

Audio out

1x 3.5mm Audio
2x12W 2.0 Stereo Speaker

LAN

1x RJ45

USB

USB 3.0 × 4
USB 2.0 × 1
Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

RS232

1x RS232

Physical Specification

Active Screen Size

75 Inch

Dimensions

1713.2 x 1034.5 x 82.5mm

Weight

51.23 kg

Power

100 to 240 VAC, 50/60 Hz

Standby Power

≤ 0.5 W

Power Requirements

< 107W

Others

Camera: Pixel 48MP for Photos & 8 MP for Video
Camera Function: Support intelligent switching between Android system, OPS, and PC.
Field Angle: 120°(diagonal), 110°(horizontal), 75°(vertical)
Distortion: ≤2.5%
Camera Resolution Ratio: Up to 4K
Microphone: Omni-directional 8-array layout
Mic Function: Echo reduction and smart noise-cancellation
Voice Distance: 12 m
Sampling Rate: 32 K
Mic Sampling Rate: 16 bit
Loudspeaker: Built-in 2 ×20 W+25W loudspeaker;
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC: Support screen mirroring by Android phones
Light Sensor: Yes

Warranty

Warranty

3 Years
