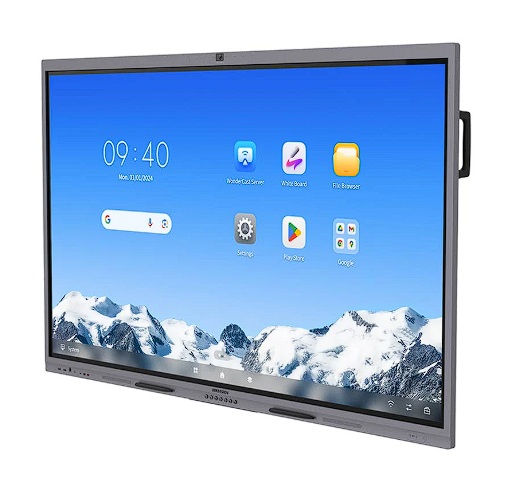

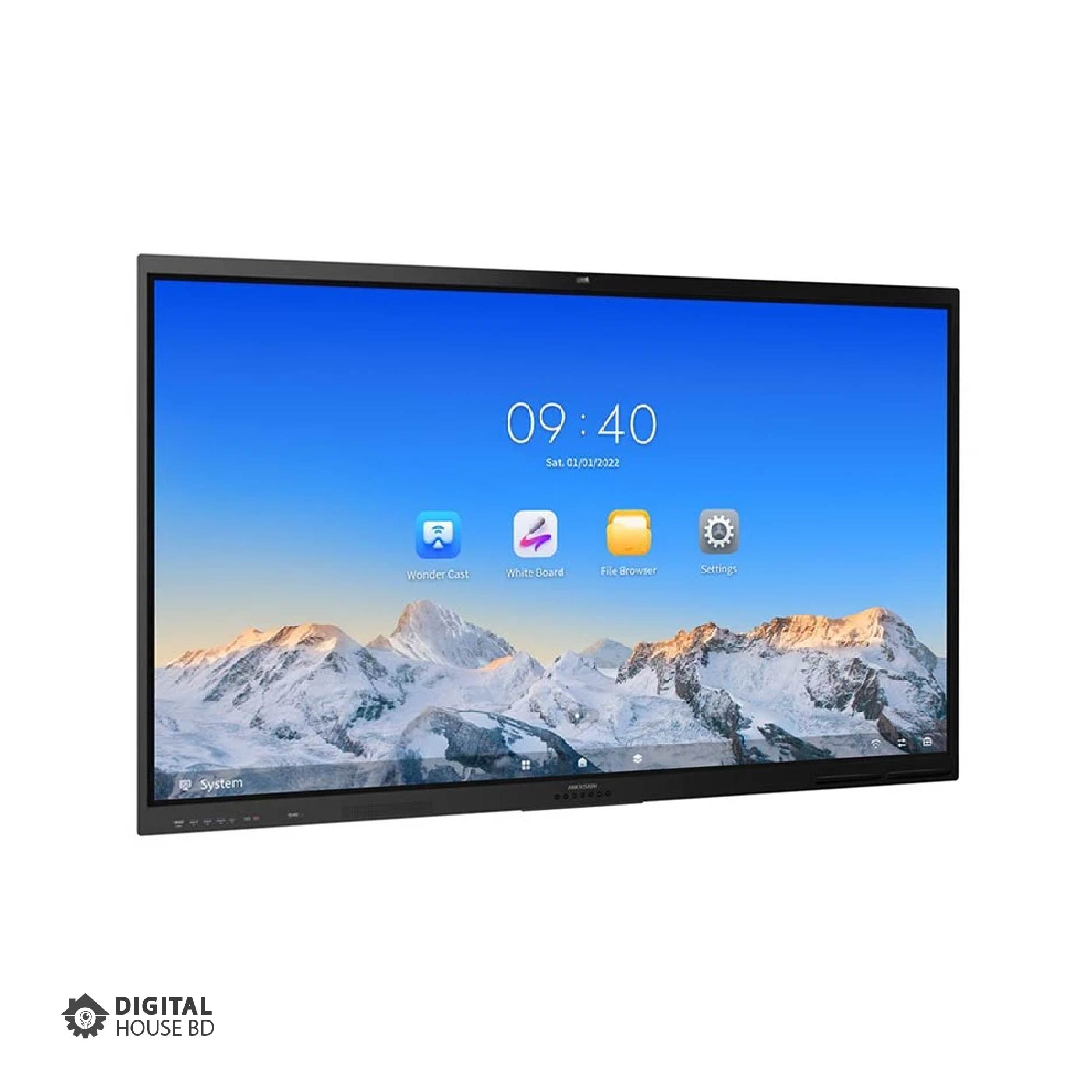

Hikvision DS-D5B75RB/EL 75" 4K UHD 128GB Storage Interactive Flat Panel

Display Details

Display Format Native Resolution

4K Ultra HD 3840 × 2160

Aspect Ratio

16:9

Picture Response Time

5ms

Refresh Frequency

60Hz

Pixel Pitch

0.143 (H) mm × 0.430 (V) mm

Display Colors

1.07G
Color Depth: 10 bit

Brightness (typical)

400 cd/m² (Typ.)

Contrast Ratio

1200:1 (Static)
15,000:1 (Dynamic)

Viewing Angle

178°(H)/178°(V)

Life Time

50,000 hours

Others

Surface Haze: 25% Haze
Display Area: 1649.66 mm × 927.94 mm
Working Duration: 7 × 16H
Surface Hardness: 9H (Pencil) 7 (Mohs)
Surface Glass: 3.2 mm Anti-Glare Glass
Transmittance: 88% ± 3

Touch System

Touch Point

40-point multi-touch

Touch Response Time

＜ 5 ms

Surface Hardness

9H

Interpolation Resolution

32767 × 32767

Others

Minimum Touch Object: ≥ 2 mm (≥ 90% touching area)
Touch Precision: ± 1 mm (≥ 90% touching area)

Operating System

System Version

Android 13.0

CPU

Cortex-A55 × 4 (1.92GHz)

GPU

Mali-G52 MP2 (2EE)

RAM

8GB

ROM

128GB

Others

HDCP Version: Support 1.4/2.2/2.3

Connectivity

HDMI

HDMI In （HDMI 2.0）× 2

PC Audio In

Audio In × 1

Audio out

Audio Out × 1

LAN

LAN (100 Mbps) × 2

USB

USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0)

RS232

1x RS232

Others

TOUCH-USB 2.0 × 1

Physical Specification

Active Screen Size

75"

Dimensions

1713.23 mm × 1025.53 mm × 82.5 mm

Weight

49.15 kg

Power

100 to 240 VAC, 50/60 Hz

Standby Power

≤ 0.5 W

Power Requirements

Max. Consumption: 217 W
Average Consumption: 175 W

Others

WIFI AP&Station，2.4G/5G
WIFI AP：IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
WIFI Station：IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Loudspeaker
Built-in 2 × 20 W
Speaker Frequency
200-20Khz
Bluetooth
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2
NFC
Support card reader
Light Sensor
Yes

Warranty

Warranty

3 Years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue)
