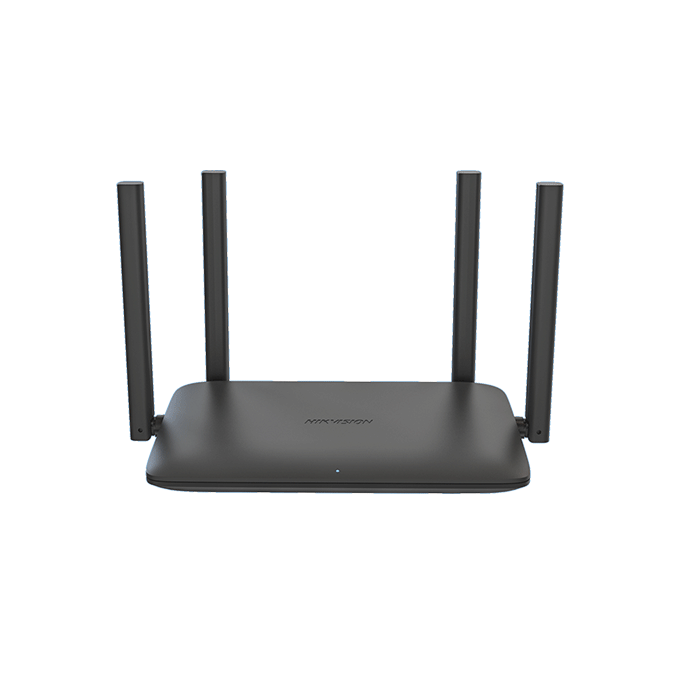

HIKVISION DS-3WR15X AX1500 Wi-Fi 6 Wireless Router

Product Dimensions (W × H × D)

241.3 mm × 140.8 mm × 156.3 mm

Package Dimensions (W × H × D)

320 mm × 265 mm × 55 mm

Net Weight

0.245 kg

Gross Weight

0.790 kg

Operating Temperature

0℃ to 40℃ (32℉ to 104℉)

Operating Humidity

10% to 90% RH (non-condensing)

Storage Temperature

-40℃ to 70℃ (-40℉ to 158℉)

Storage Humidity

5% to 95% RH (non-condensing)

Mounting Method

Desk-Mounted, Wall-Mounted

Packing Type

Single pack

Included Items

• 1500Mbps Wi-Fi 6 Router × 1

• Power Supply Adaptor × 1

• CAT5e Network Cable × 1

• Quick Start Guide × 1

• Regulatory Compliance and Safety Information × 1

Wireless Standards

IEEE 802.11a/n/ac/ax @5GHz
IEEE 802.11b/g/n @2.4GHz

Frequency Band

2.4GHz, 5GHz

Transmit Power (CE)

<20dBm (2.4GHz)
<23dBm (5GHz)

Receiver Sensitivity

5GHz:
-89dBm @ HE80-MCS0
-60dBm @ HE80-MCS11
2.4GHz:
-93dBm @ HT40-MCS0
-73dBm @ HT40-MCS7

Antenna

4 high gain antennas

Antenna Gain

5 dBi

Wireless Range

Up to 1300 ft² / 120 m²

Maximum Connected Devices

128

Recommended Devices

50

Wireless Features

Dual Band Supported
MU-MIMO Supported
Beamforming Supported
OFDMA Supported

Maximum Transmission Rate

≤1500 Mbps
5GHz: 1201 Mbps
2.4GHz: 300 Mbps

Ports

1 × 10/100/1000 Mbps Adaptive WAN Port
3 × 10/100/1000 Mbps Adaptive LAN Ports

LED Indicators

Red/blue for different states, flashing mode

Power Supply

Power Supply Adapter

Power Specification

DC 12V, 1A

Buttons

Reset button, WPS button

RAM

128MB DDR2

Flash Memory

128MB NAND

Max Power Consumption

≤10W

Security Modes

WPA2-PSK, WPA/WPA2-PSK Supported

DHCP

DHCP Client List
DHCP Server

Security Features

Fast and Secure WPS Connection
Hide Wireless Network Name
Terminal Network Control
Firewall Support
Login Authentication

Management

Web Control (PC, Mobile)
App Control (HPP, HC)
TR069 (TR098/TR181)

Firmware Upgrades

Web Upgrade
App Cloud Upgrade
Auto Upgrade

System Logs

System Log Supported

Operation Modes

Router Mode
Wireless Extender Mode
Access Point Mode

WAN Mode

DHCP
Static IP
PPPoE

IP Versions

IPv4, IPv6

Parental Control

Speed Limit
Internet Access Time Control
URL Filtering
Custom Profiles

Firewall

Forbid UDP Flood Attack
Forbid TCP SYNC Flood Attack
Forbid ICMP Flood Attack

DDNS

Oray

VPN

PPTP Client, L2TP Client

NAT Forwarding

Port Mapping
DMZ
UPnP

Other Features

VLAN/IPTV
WAN Self-Adaption
Quick Diagnosis
Wi-Fi Optimization

MESH

Hikvision Mesh
